[OBS] Remove Background without Green Screen – 3 Free Plugins

Do you want to use OBS to remove background without green screen? This article offers 3 free OBS background removal plugins, as well as detailed steps on how to remove and change video backgrounds using this kind of OBS Studio plugin.
Dereje GetieLast Updated: September 27, 2022
Follow us on:

OBS (Open Broadcaster Studio) is a free and open-source software for video recording and live streaming. It provides real-time capture, encoding, and broadcasting for YouTube, and many other providers. It can take real-time video/audio capturing at a high performance. Besides, suppose you have different types of sources i.e. captures, images, text, webcam, it can create an accurate scene of them.

If you want to take a video streaming using OBS Studio, you don’t need to have a green screen for your webcam since there are some free virtual green screen plugins that you can use to remove your background. These plugins are free and applicable for windows, Mac, and Linux.

Based on machine learning techniques, a lot of free and easy-to-use desktop programs can help you quickly remove the webcam background without the green screen, and even replace it with webpages, PPTs, YouTube videos, and more file types. Learn more >

Top 3 OBS Background Removal Plugins

There are 3 OBS plugins that you can use to remove video background, no matter for video recording or streaming.

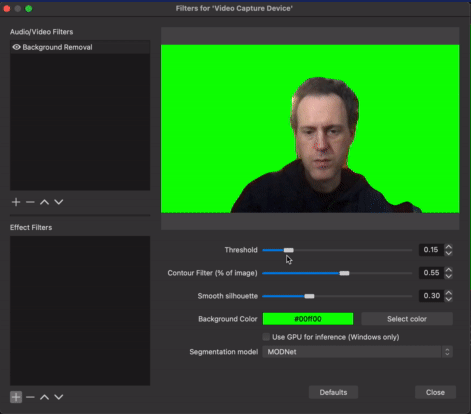

1. OBS Background Removal – Portrait Segmentation

OBS Background Removal - Portrait Segmentation

OBS Background Removal – Portrait Segmentation

Portrait Segmentation is a free plugin that you can use on OBS Studio to turn your webcam background into a virtual green screen on the computer, regardless of Windows or Mac. The advantage is that this plugin doesn’t require a GPU and works in all OSs!

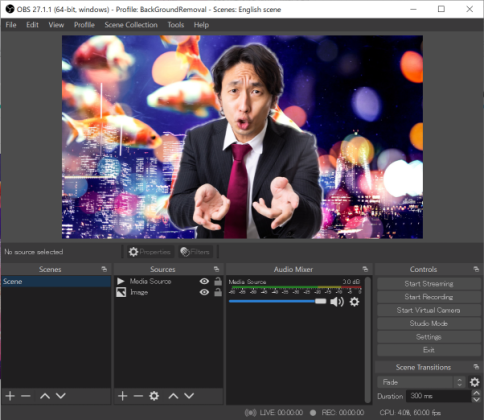

2. OBS Virtual Background Plugin (Windows)

OBS Virtual Background Plugin (Windows)

OBS Virtual Background Plugin (Windows)

Virtual Background plugin is an OBS plugin for Zoom/Meet-like virtual background features. It uses deep learning-based segmentation to change the virtual background from a portrait image or video. And there is no need to use Chroma Key.

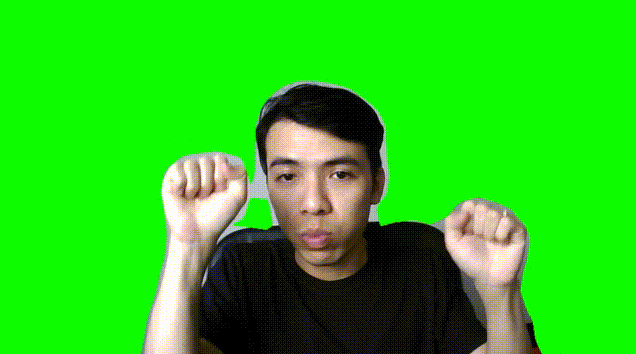

3. OBS Virtual Green Backdrop – GreenCam

OBS Virtual Green Backdrop - GreenCam

OBS Virtual Green Backdrop – GreenCam

GreenCam is a free virtual green backdrop powered by machine learning tech – Tensorflow and BodyPix. With GreenCam, you can replace the webcam background with green color so that you can use the OBS Chroma Key filter to remove, blur and change the background.

Detailed Steps: Remove OBS Webcam Background without Green Screen

Below you will have detailed step-by-step procedures on how to use one of the OBS background removal plugins to change your webcam background. Let’s get started!

We’ll take OBS Background Removal – Portrait Segmentation as an example.

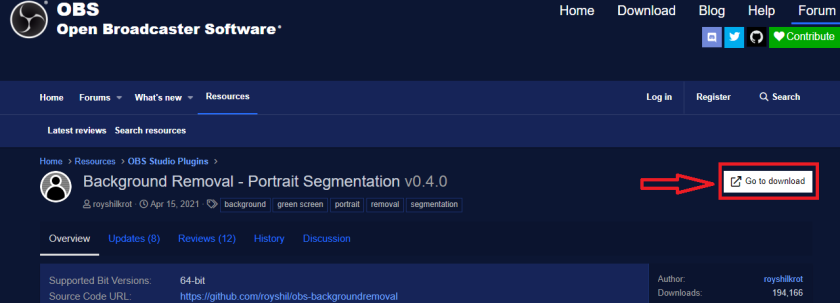

Step 1: The first thing that you have to do is download the plugin for obs, the link will take you directly to the downloading webpage. Click on the “Go to Download” button.

Download OBS Background Removal

Download OBS Background Removal

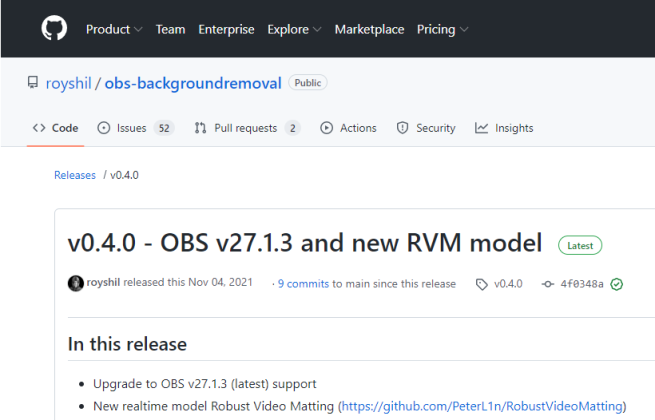

Step 2: Once you press the “Go to download” button, it will take you to a new webpage (GitHub downloading page).

Download OBS Background Removal from GitHub

Download OBS Background Removal from GitHub

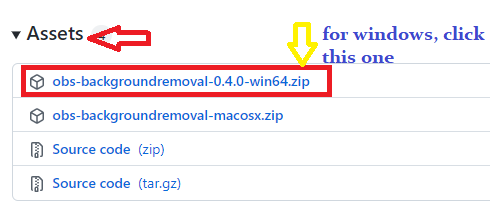

Scroll down till you get Assets. Then choose your operating system,

Download OBS Background Removal Zip File

Download OBS Background Removal Zip File for Windows

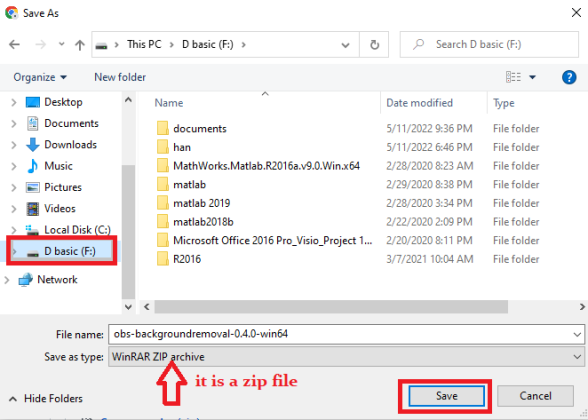

Step 3: Download the zip file and save it on your preferred location (mine is on D: drive) as shown below.

Save OBS Background Removal Plugin to Your Computer

Save OBS Background Removal Plugin to Your Computer

Step 4: Extract the zip file and you will get two folders as shown below in the figure. Copy and paste both the folders in the obs-studio installation folder.

Extract OBS Background Removal Zip

Extract OBS Background Removal Zip

Find the installation path of your OBS Studio and past the plugin files to it. My OBS installation folder is located in the C: drive.

Extract OBS Background Removal Zip

Extract OBS Background Removal Zip

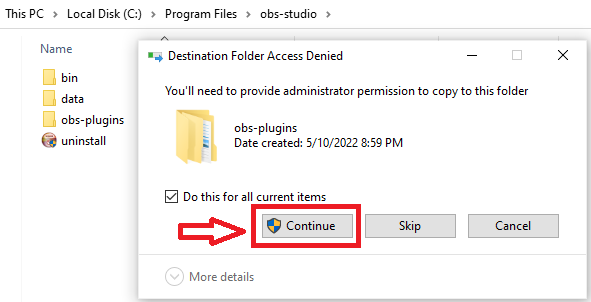

As you perform pasting the folders, you may need to provide administrators’ permission, click on Continue.

Extract OBS Background Removal Zip

Extract OBS Background Removal Zip

Now, you are ready to start using plug-ins for background removal on your webcam in obs-studio.

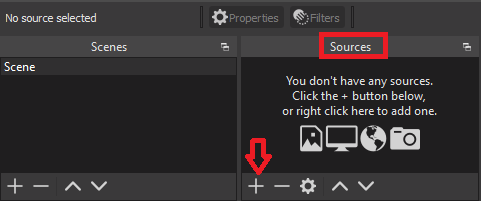

Step 5: If you already have OBS opened, go ahead and close, then reopen it. If there is no source found, click the “+” sign to add your webcam.

Click + to Add a Source on OBS

Click + to Add a Source on OBS

When you click on the “+”, sign you will get the following pop-up, and choose video capture device.

Choose Video Capture Device - OBS Studio

Choose Video Capture Device – OBS Studio

Clicking on your “video capture device” will give the following pop-up. Click “ok”, and don’t forget to make your source visible.

Step 6: Now, you will get your camera with your background.

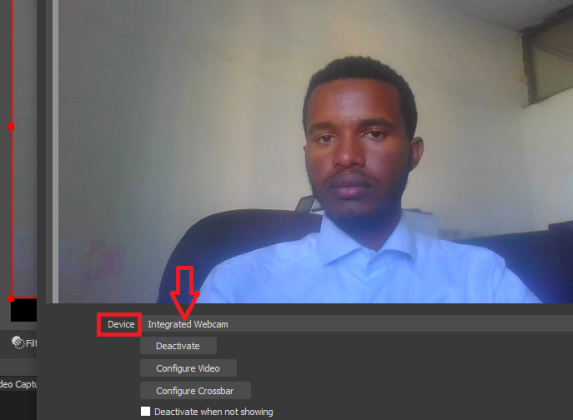

In the drop-down device list, select your camera (mine is an integrated camera)

Select Video Capture Source on OBS Studio

Select Video Capture Source on OBS Studio

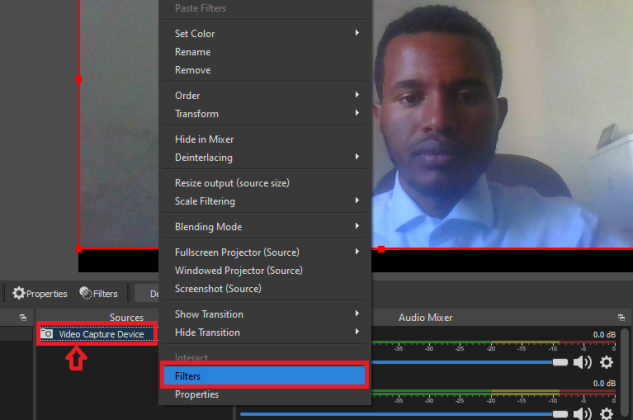

Once you add your camera, go to Sources > right-click on your camera > go to Filters.

Right Click Video Capture Device and Choose Filters

Right Click Video Capture Device and Choose Filters

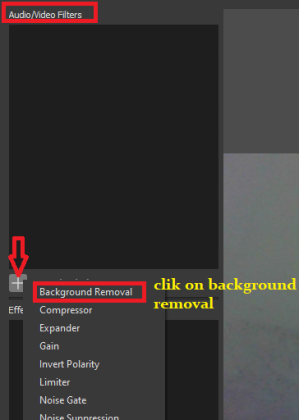

Under Audio/Video filters, click on “+” sign > click on Background Removals > click OK.

Add Background Removal Filter on OBS Studio

Add Background Removal Filter on OBS Studio

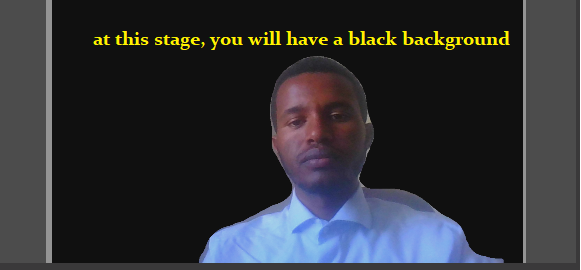

Then as you see, your background is removed.

Background Removed on OBS Studio

Background Removed on OBS Studio

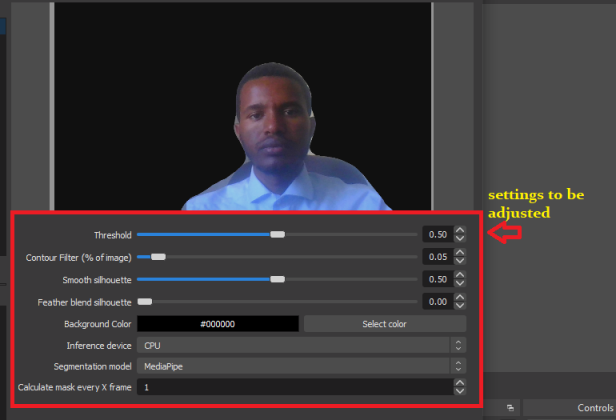

Step 7: Now we have some settings that we have to make adjustments to improve the accuracy of that background color removal.

Adjust Background Removal on OBS Studio

Adjust Background Removal on OBS Studio

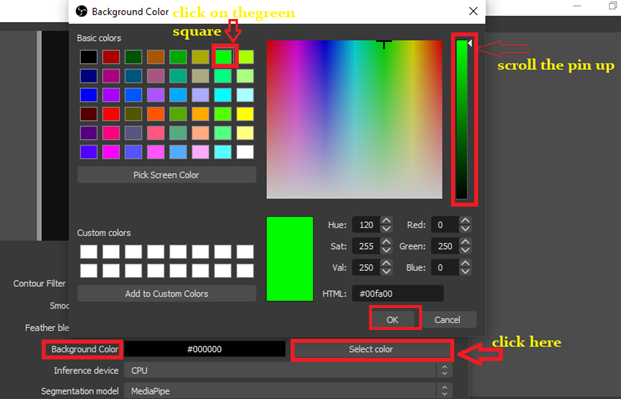

here is the deal now, first you have to add the green screen, and to do that go to background color > click on “select color” > choose green as background color > finally click “ok”.

Select Background Color - OBS Background Removal

Select Background Color – OBS Background Removal

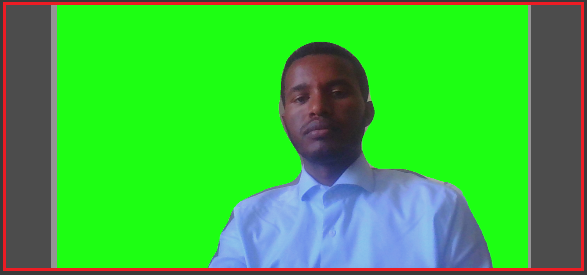

Here, you have to click on the green square in order to make the background of your webcam green. Moreover, you shouldn’t forget to scroll up the pin bar (at the right corner), to increase the density of the color. The density of the color as a direct effect on the precision of the background removal. After doing this you will have a green webcam background.

Select Background Color - OBS Background Removal

Select Background Color – OBS Background Removal

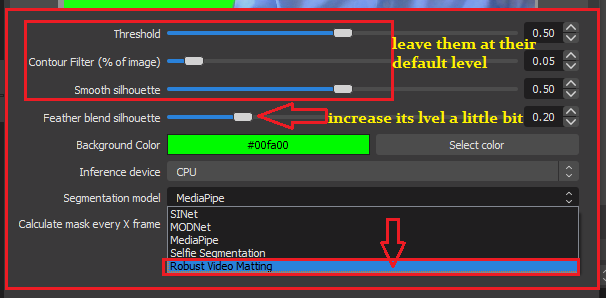

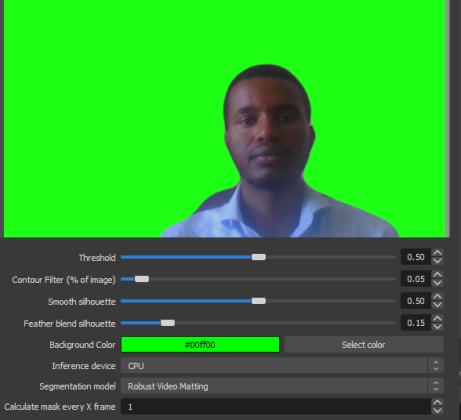

Step 8: Among the setting characteristics, you can leave the first three adjustments (threshold, contour filter, and smooth silhouette) at their default adjustment. You can increase the level for the feather blend silhouette a little bit.

OBS Background Removal Settings

OBS Background Removal Settings

I highly recommend you deal with the segmentation models. You will have five different models (SINet, MODNet, MediaPipe, Selfie Segmentation, and Robust Video Matting). They are the models which perform the removal of the background. It is better to select Robust Video Matting for better accuracy of background removal. If this module is not available, go for MediaPipe or SINet. Finally hit the close button.

After closing, you will have the following window, a webcam with green virtual screen i,e your webcam background removed.

OBS Background Removal Settings

OBS Background Removal Settings

Step 9: Now you need to do is add a background. You can add an image or a video as your background. Let’s take a look at how you are going to add an image and a video one by one. Let’s begin with the image.

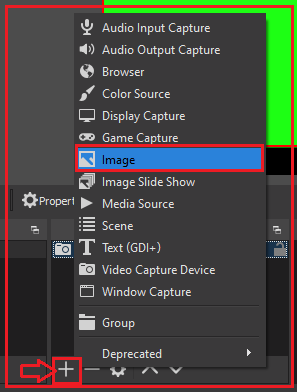

To add an image, go under sources > click on the “+” sign > image.

Change OBS Background with an Image - 1

Change OBS Background with an Image – 1

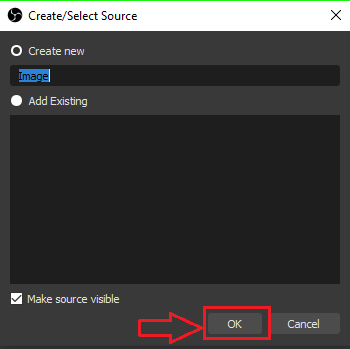

Select “ok”.

Change OBS Background with an Image - 2

Change OBS Background with an Image – 2

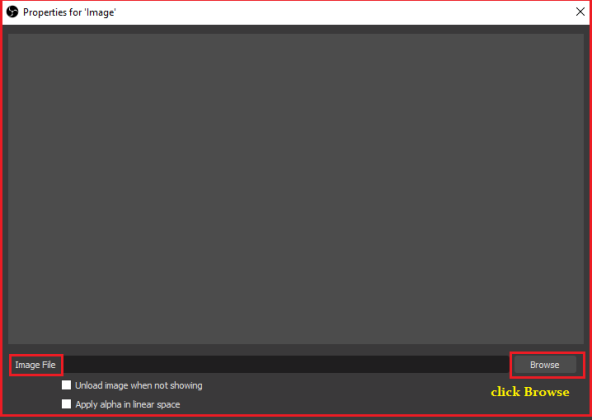

under the image file select “browse”.

Change OBS Background with an Image -3

Change OBS Background with an Image -3

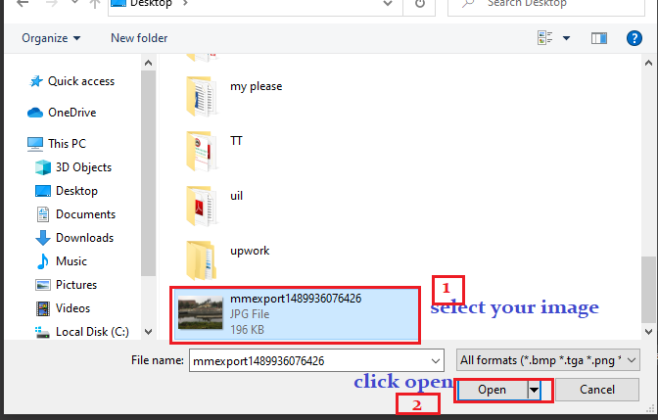

Find the image file that you are interested in to make it your background > open it up.

Change OBS Background with an Image - 4

Change OBS Background with an Image – 4

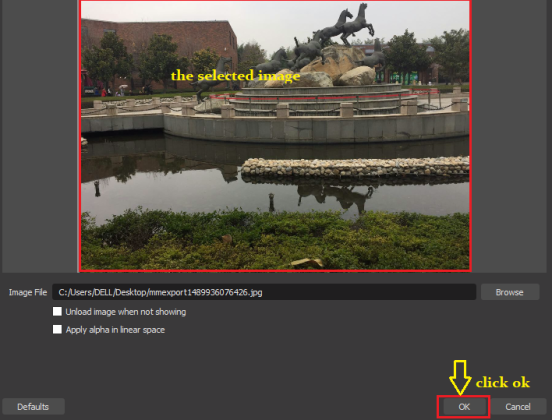

A window with your selected image will pop up and then click “ok”.

Change OBS Background with an Image - 5

Change OBS Background with an Image – 5

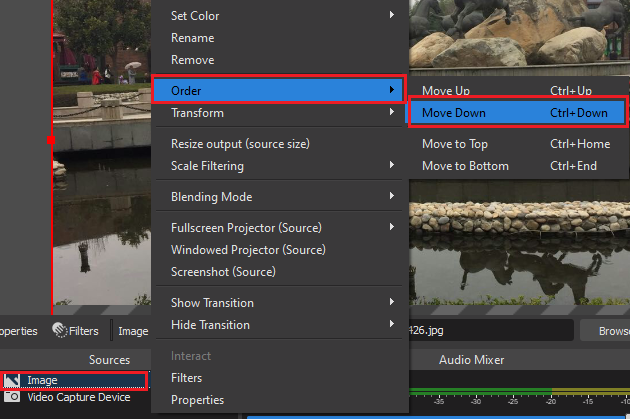

Then after, you have to make sure that your image is at the bottom of your webcam. To do that, you have two methods.

  • under sources, go to your selected image, double click on it, drag and put it underneath your webcam.
  • under sources, right-click on the image>order>move down.
Change OBS Background with an Image - 6

Change OBS Background with an Image – 6

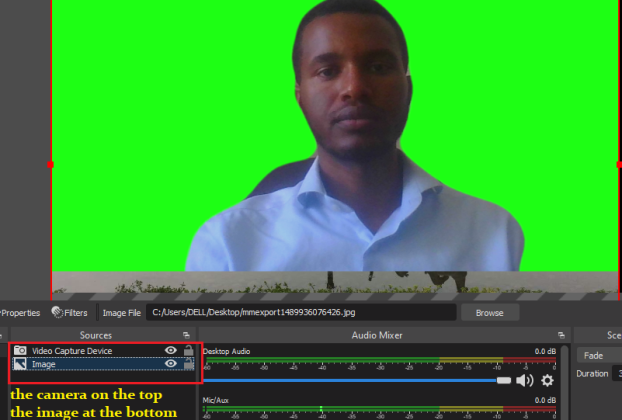

The ordering result will give you the camera at the top and the image at the bottom. At this stage, you will have a green screen still as depicted in the image below. Don’t worry, a single step remains to discard it from your webcam.

Change OBS Background with an Image - 7

Change OBS Background with an Image – 7

Step 10: add effect filters. To do this

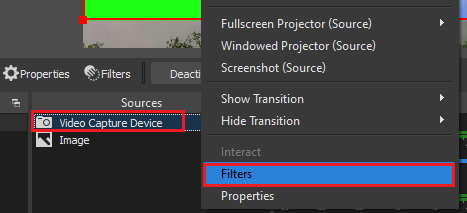

Under sources, you need to right-click on your webcam> click on “filters”,

OBS Background Removal with Chroma Key Filter - 8

OBS Background Removal with Chroma Key Filter – 8

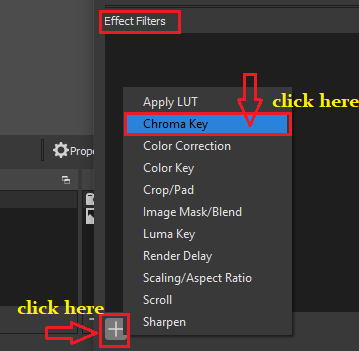

under effect filters > select the “+” sign > then go to Chroma Key >,

OBS Background Removal with Chroma Key Filter - 9

OBS Background Removal with Chroma Key Filter – 9

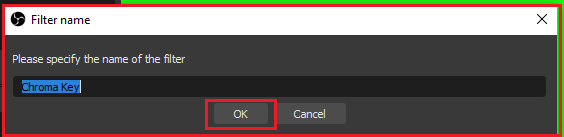

Select ok,

OBS Background Removal with Chroma Key Filter - 10

OBS Background Removal with Chroma Key Filter – 10

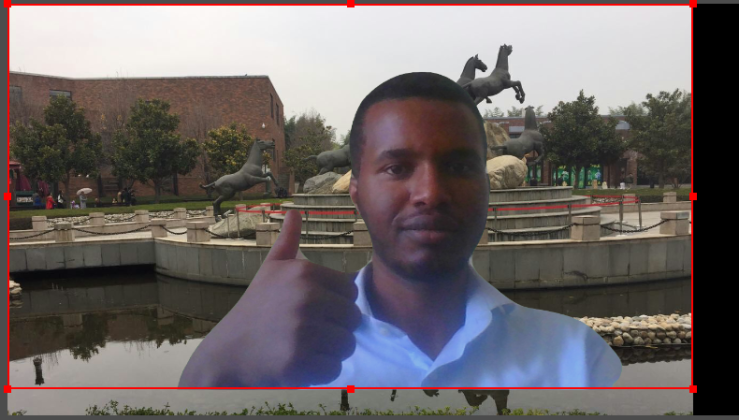

Done! Now you have your background removed.

OBS Background Removal with Chroma Key Filter - 11

OBS Background Removal with Chroma Key Filter – 11

Now, let’s run for how video can be added as your background. The procedures you have to follow are simple

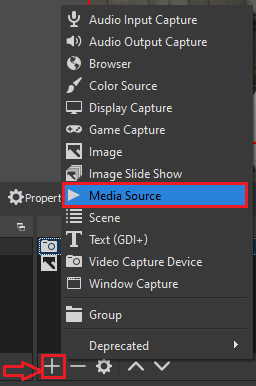

under sources, click on the “+” sign, and then click on Media Source.

Replace OBS Background with a Video - 2

Replace OBS Background with a Video – 2

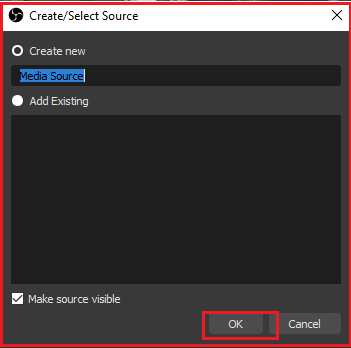

After clicking the Media Source, the following mini window will pop up and you have to click “ok”.

Replace OBS Background with a Video - 2

Replace OBS Background with a Video – 2

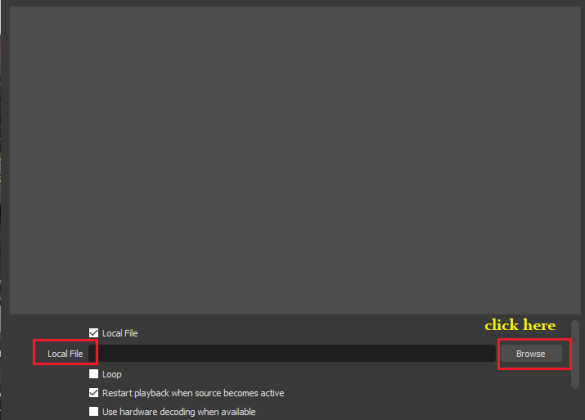

Then, under the local file click on browse and it will let you select the video that you are interested to make as your webcam background.

Replace OBS Background with a Video - 3

Replace OBS Background with a Video – 3

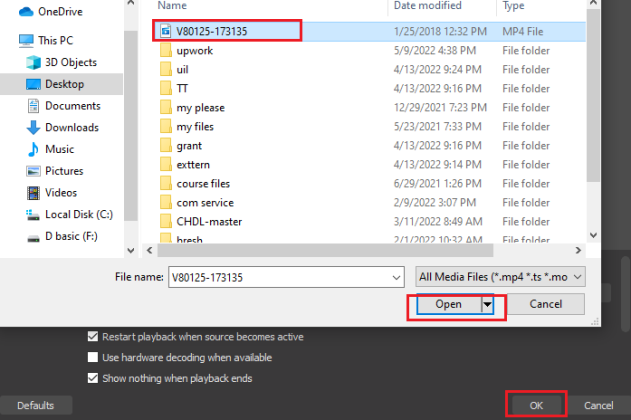

All you have to do is select your video> open it up >and click on OK

Replace OBS Background with a Video - 3

Replace OBS Background with a Video – 3

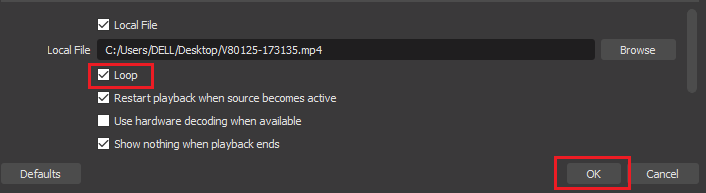

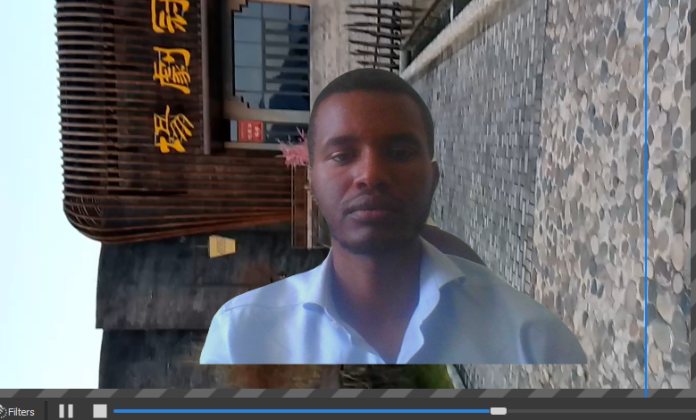

Like that of the image, make sure your video file is underneath your webcam device. Then

Replace OBS Background with a Video - 4

Replace OBS Background with a Video – 4

Replace OBS Background with a Video - 7

Replace OBS Background with a Video – 7

Bonus Tip: 1-Click Remove, Blur & Change Webcam Background

Although OBS plugins enable you to remove the background, the process would be complex for beginners. Therefore, you may like to use some professional green screen software to make it in some simple clicks.

Below is a video showing how to remove, blur, and replace the webcam background within clicks using FineCam.
